Description

Item Number: AP4711Core Charge: $0.00Manufacturer: OEM SandenDescription: OEM # 8177089,4710 4711, 8103, 4281

/ New AC Compressor

Shipping Weight: 18.0 lbs

 2 Years Warranty

 This compressor fits Kenworth, Navistar, and Peterbilt Trucks Caterpillar

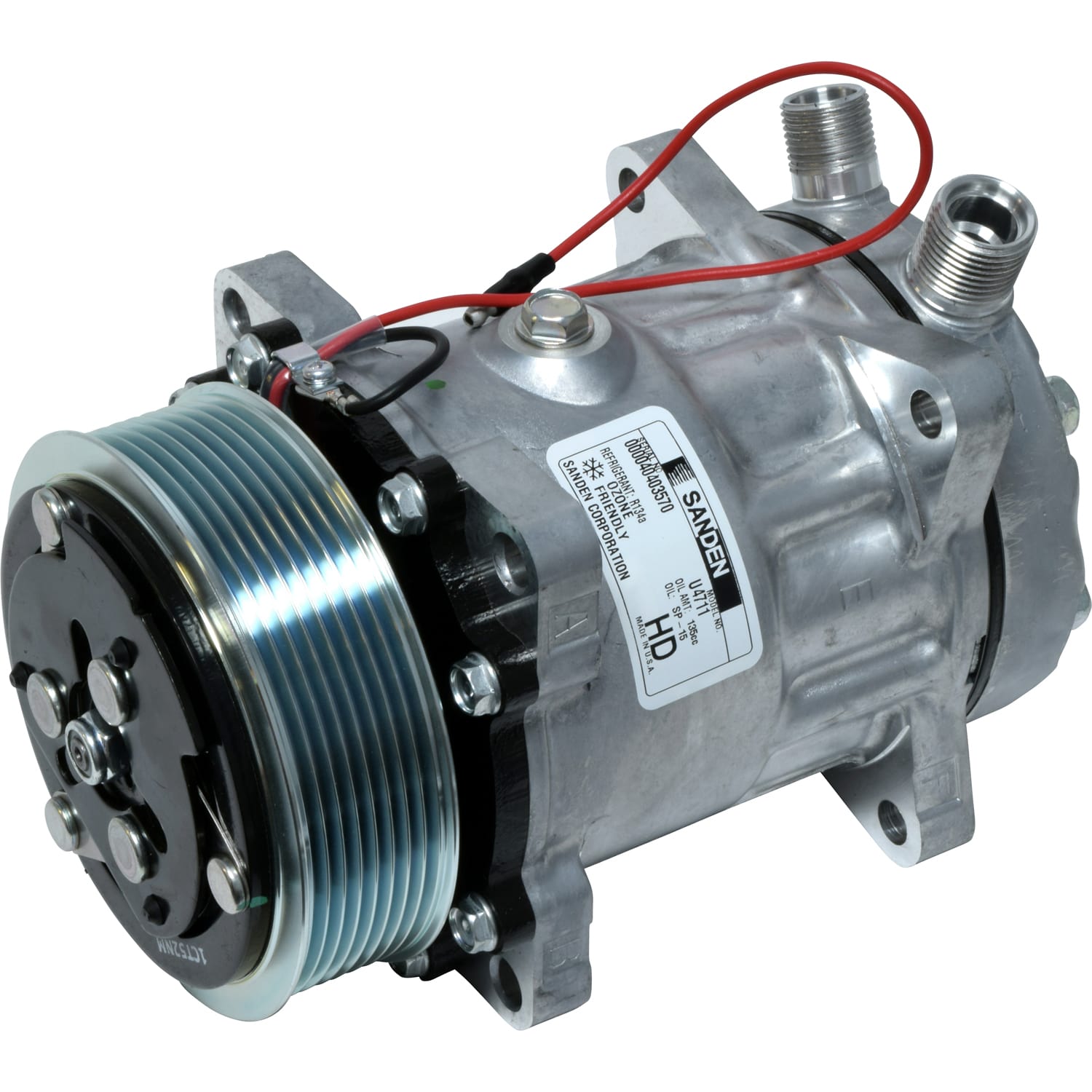

Compressor Specs:

• 8 Groove Clutch
• 119mm
• JDA/JD Rear Head
• 12 Volt

Sanden Model Numbers: 4281, 4660, 4711,SD7H15 4154, 4597, 200D34, 6022, 7890, 8028, 8100, 82016158, 820161581

Sanden SD7H13 4711 8026 7492 7890 8103 7865

Multi Fit Applications

Description: SANDEN SD7H15 COMP.W/8GR/VT

Volts: 12V

Clutch Diameter: 119mm

No. of Grooves: 8 groove

Belt Type: Serpentine

No. Comp. Cylinders: 7 cyl

Comp. Displacement (ci): 9.5 cu.in.

Factory Oil Charge: 135cc Oil

Fitting Port Position: Vertical

Fitting Style: Tube-O 1 x 14

Head Type: CB

Wire Type: 1 Wire Male Bullet

Replacement Clutch Assy.: 02-3468

Replacement Head Assy: NSS

Model: SD7H15HD

Mounting Type: Ear 8 Long

Oil Type: PAG100

MADE IN USA
