Description

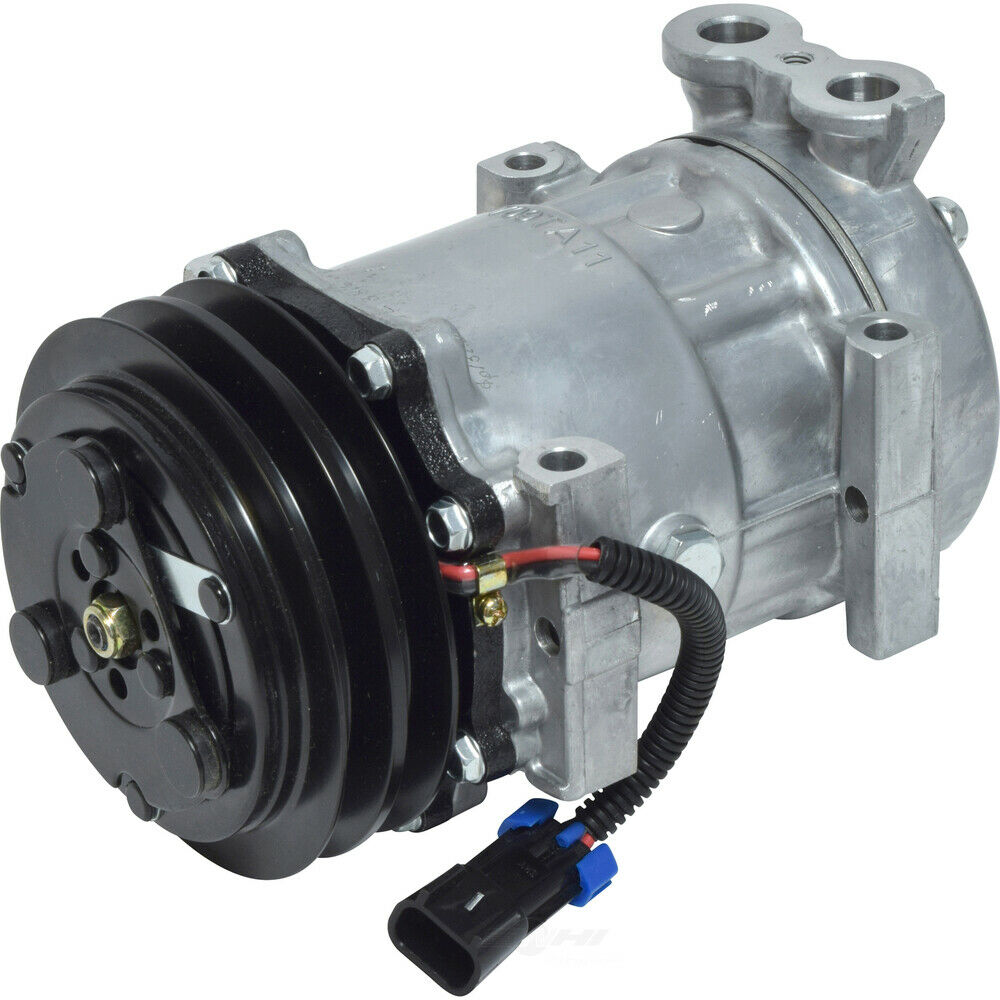

PRODUCT INFORMATION
| Part Number: | AP4540 |
|---|---|
| Manufacturer: | Airparts |
| OEM Number: | SKI4540 4540 |
| Product Condition: | NEW |
| Core Charge: | No (Shipped Items Only) |
| Warranty: | 2 Years Learn More |
| Shipping Information: | Sameday Ground |
PART SPECIFICATIONS
| Description: SANDEN SD7H15 W/132MM 2GR Volts: 12V Clutch Diameter: 132mm No. of Grooves: 2 groove Belt Type: Two 1/2” Belts No. Comp. Cylinders: 7 cyl Comp. Displacement (ci): 9.5 cu.in. Factory Oil Charge: 300cc Oil Fitting Port Position: Top |
|---|
APPLICATIONS
Fitting Style: Navistar Special Pad
Head Type: 4802
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-1604 see note
Replacement Head Assy: NSS
Model: SD7H15HD
Mounting Type: Direct Long
OEM Number: SKI4540
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: w/diode
Truck Air Oring 1: 16-4272
Truck Air Seal 1: 16-4272
INTERCHANGE: SKI4540; SANDEN 4540
Head Type: 4802
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-1604 see note
Replacement Head Assy: NSS
Model: SD7H15HD
Mounting Type: Direct Long
OEM Number: SKI4540
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: w/diode
Truck Air Oring 1: 16-4272
Truck Air Seal 1: 16-4272
INTERCHANGE: SKI4540; SANDEN 4540
NEW A/C COMPRESSOR 100% PERFECT FIT
