Description
PRODUCT INFORMATION
[]
Part Number: | AP5072kt |
---|---|
Manufacturer: | Sanden OEM |
OEM Number: | 345-4547 3454547 |
Product Condition: | NEW |
Core Charge: | No (Shipped Items Only) |
Warranty: | 2 Years Learn More |
Shipping Information: | Sameday Ground |
PART SPECIFICATIONS

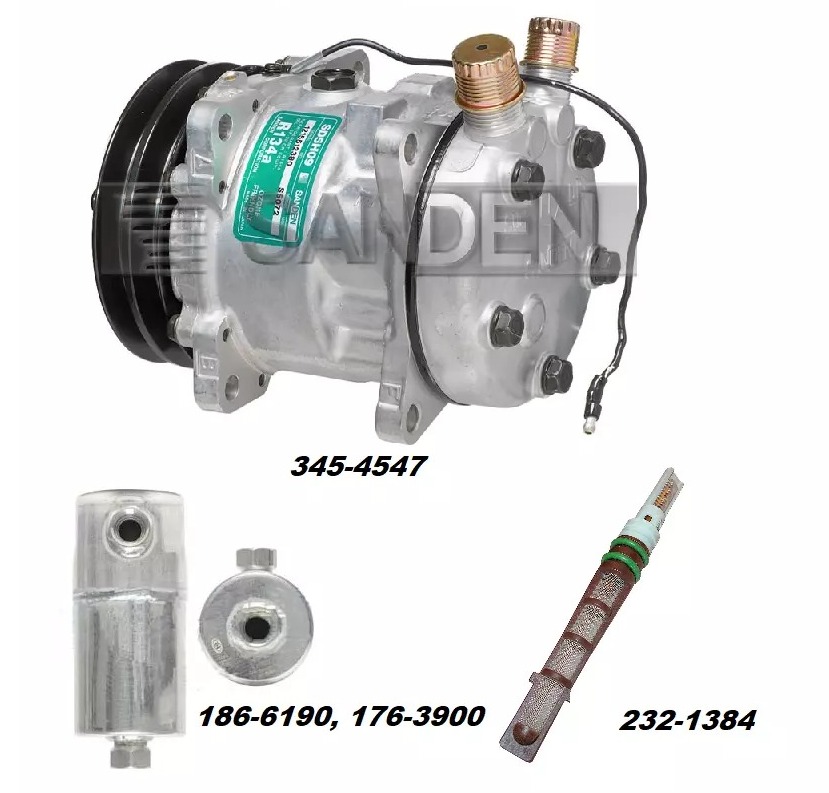

Description: OEM SANDEN COMPRESSOR SD5H09 5073 VOR 125mm 2A 24V EAR R134A, Caterpillar Skidsteer 289
OEM #: ABP N83 304662, 345-4547, 606-1394
ROTOR SIZE: 125
ROTOR GROOVE: A2
COIL VOLTAGE: 24
COMPRESSOR FAMILY: SD5H09
STYLE: STD
MOUNT TYPE: Ear 8 Short
EAR ID: 67.3
REFRIGERANT: R134A
DISPLACEMENT: 81.90
ROTATION DIRECTION: CW
OIL QTY (CC): 100
Oil Type: PAG100
CYLINDER HEAD: FL
PORT ANGLE: V
PORT CLOCKING: 12:00
HEAD PORT STYLE: 3/4X7/8
Belt Type: Two 1/2” Belts
No. Comp. Cylinders: 5 cyl
GAUGE LINE TO FIRST GROOVE: 20.85
GAUGE LINE TO MIDDLE GROOVE: 0.00
GAUGE LINE TO END GROOVE: 36.60
CONNECTOR: 1 Wire Male Bullet
Belt Type: Two 1/2” Belts
No. Comp. Cylinders: 5 cyl
Comp. Displacement (ci): 5.3 cu.in.
Shaft Type: Keyed shaft
Diode Protection: None
OEM #: ABP N83 304662, 345-4547, 606-1394
ROTOR SIZE: 125
ROTOR GROOVE: A2
COIL VOLTAGE: 24
COMPRESSOR FAMILY: SD5H09
STYLE: STD
MOUNT TYPE: Ear 8 Short
EAR ID: 67.3
REFRIGERANT: R134A
DISPLACEMENT: 81.90
ROTATION DIRECTION: CW
OIL QTY (CC): 100
Oil Type: PAG100
CYLINDER HEAD: FL
PORT ANGLE: V
PORT CLOCKING: 12:00
HEAD PORT STYLE: 3/4X7/8
Belt Type: Two 1/2” Belts
No. Comp. Cylinders: 5 cyl
GAUGE LINE TO FIRST GROOVE: 20.85
GAUGE LINE TO MIDDLE GROOVE: 0.00
GAUGE LINE TO END GROOVE: 36.60
CONNECTOR: 1 Wire Male Bullet
Belt Type: Two 1/2” Belts
No. Comp. Cylinders: 5 cyl
Comp. Displacement (ci): 5.3 cu.in.
Shaft Type: Keyed shaft
Diode Protection: None
APPLICATIONS
Application:
-
-
CATERPILLAR 325C EXCAVATOR
-
